16mm UM10 Grade Carbide Rod with Two Holes, Random Length
16mm UM10 Grade Carbide Rod with Two Holes, Random Length
SKU:SOL-3deef1
Top-grade 16mm UM10 Grade Carbide Rod with Two Holes. Precision-ground for accuracy and quality. ISO h6 compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
16mm UM10 Grade Carbide Rod with Two Holes, Random Length
$79.99
Quantity: 1
Claim Your Seller Account
16mm UM10 Grade Carbide Rod with Two Holes, Random Length
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

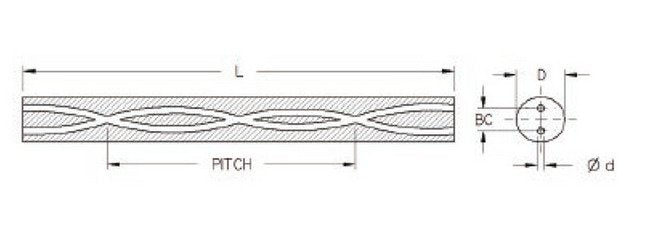

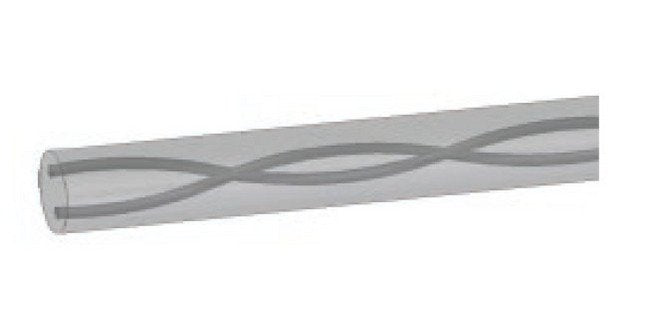

The 16mm UM10 Grade Two Hole 40 Degree Precision Ground Carbide Rod is a top-tier solution for precision machining applications. This carbide rod, part of the Two Hole 40 Degree Precision Ground Random Length series, boasts a polished finish, 16mm diameter, and a length of 330mm (+5mm | 0mm tolerance). With a precise hole diameter of 1.20mm and a pitch of 59.90mm, this rod guarantees superior performance. Compliant with ISO tolerance type h6, it ensures consistent quality and reliability. Ideal for industrial and government procurement requirements, this carbide rod is a dependable choice for demanding machining tasks.
Product Specifications
Classifications Between Centers Bc Diameter
5.1 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
16 mm
Classifications Finish
Polished
Classifications Hole D
1.20 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
59.90 mm
Classifications Shipping Weight
1.124711199 Kilogram
