16mm UM10 Grade Three Hole Precision Ground Carbide Rod
16mm UM10 Grade Three Hole Precision Ground Carbide Rod
SKU:SOL-743a95
High-quality 16mm UM10 Grade Carbide Rod for precision machining needs. Polished finish, 30-degree angle holes, h6 ISO tolerance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
16mm UM10 Grade Three Hole Precision Ground Carbide Rod
$59.99
Quantity: 1
Claim Your Seller Account
16mm UM10 Grade Three Hole Precision Ground Carbide Rod
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

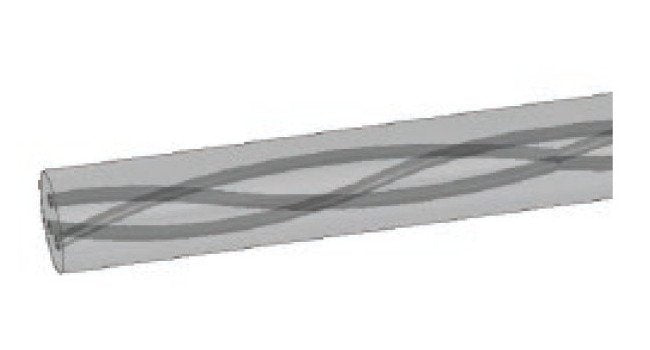

The 16mm UM10 Grade Three Hole Precision Ground Carbide Rod is meticulously engineered for precision machining applications. With a polished finish and a diameter of 16mm, this rod boasts exceptional quality and durability. The three 1.60mm holes are precisely positioned at a 30-degree angle, ensuring optimal performance. Compliant with h6 ISO tolerance standards, this rod offers reliable and consistent results. Perfect for industrial and manufacturing settings requiring high-precision tools.
Product Specifications

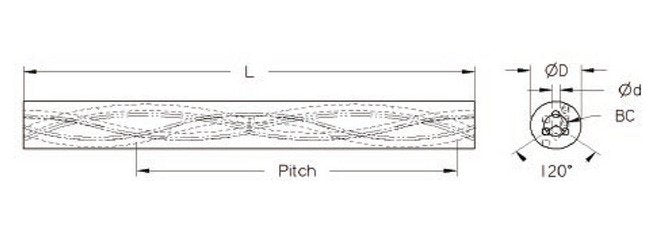

Classifications Between Centers Bc Diameter
8.05 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
16 mm
Classifications Finish
Polished
Classifications Hole D
1.60 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
87.06 mm
Classifications Shipping Weight
1.124711199 Kilogram
