16mm UM10 Grade Two Hole Carbide Rod
16mm UM10 Grade Two Hole Carbide Rod
SKU:SOL-cbb432
High-quality 16mm UM10 Grade Two Hole Carbide Rod for precision machining applications. Polished finish, 30-degree pitch, 330mm length, ISO h6 compliance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
16mm UM10 Grade Two Hole Carbide Rod
$89.99
Quantity: 1
Claim Your Seller Account
16mm UM10 Grade Two Hole Carbide Rod
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

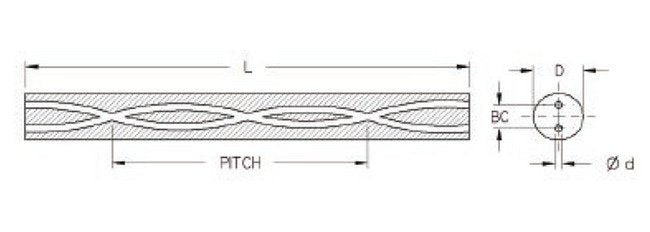

The 16mm UM10 Grade Two Hole Carbide Rod is a precision-ground carbide rod designed for high-performance applications. With a polished finish and a diameter of 16mm, this rod features a 30-degree pitch and a length of 330mm with tight tolerances. The two 1.75mm holes and precise between centers (BC) diameter of 7.9mm ensure accuracy and durability. Compliant with ISO tolerance Type h6, this carbide rod is ideal for industrial use, offering reliability and quality in machining processes.
Product Specifications
Classifications Between Centers Bc Diameter
7.9 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
16 mm
Classifications Finish
Polished
Classifications Hole D
1.75 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
87.06 mm
Classifications Shipping Weight
1.124711199 Kilogram
