16mm UM12 Grade Carbide Hole Rod

Name: 16mm UM12 Grade Carbide Hole Rod
Brand: Ultra-Met
SKU: SOL-cdb4cd
Price: 69.99 USD
Availability: OutOfStock

SKU:SOL-cdb4cd

High-precision 16mm UM12 Grade Carbide Rod for industrial machining. Polished finish, ISO Type h6 tolerance, and coolant hole for versatility.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

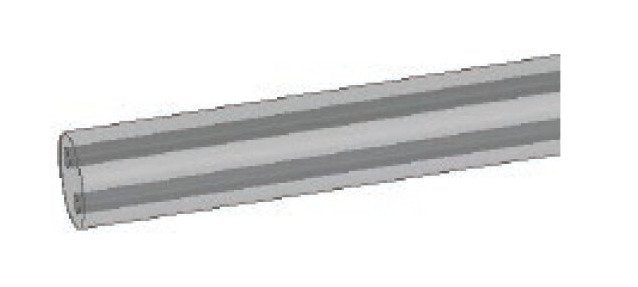

The 16mm UM12 Grade Precision Ground Carbide Hole Rod is a top-tier industrial solution for precise machining. With a polished finish and a 330mm length (+5mm | 0mm tolerance), it features a 16.00mm diameter, ideal for high-precision operations. This rod meets ISO tolerance Type h6, ensuring consistent quality and performance. The 1.50mm coolant hole adds versatility, while the UM12 carbide grade guarantees durability for prolonged use. Perfect for institutional buyers seeking reliability and accuracy in their operations.

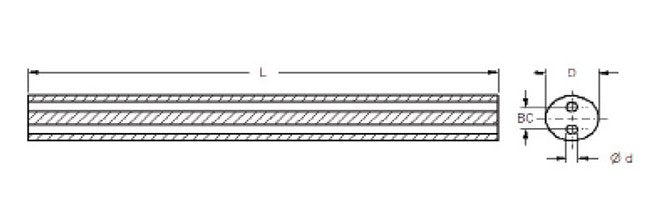

Product Specifications

Classifications Between Centers Bc Diameter

5.0 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM12

Classifications Diameter

16.00 mm

Classifications Finish

Polished

Classifications Hole D

1.50 mm

Classifications Hole D Tolerance

0.20 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

1.035027799 Kilogram

16mm UM12 Grade Carbide Hole Rod
