16VAC Wall Plug-In Power Supply - UL Level VI, 750mA
16VAC Wall Plug-In Power Supply - UL Level VI, 750mA
SKU:WAL-cd5bf2
Reliable 16VAC UL Level VI Power Supply with 750mA output, ideal for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16VAC Wall Plug-In Power Supply - UL Level VI, 750mA
$29.99
Quantity: 1
Claim Your Seller Account
16VAC Wall Plug-In Power Supply - UL Level VI, 750mA
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

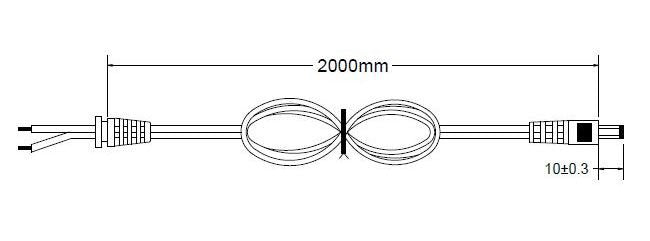

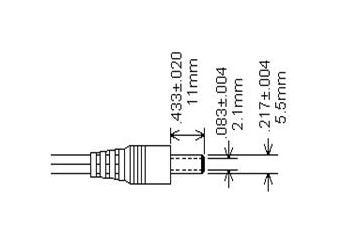

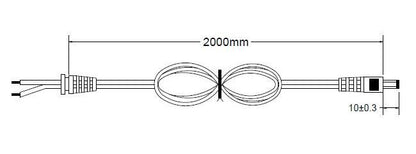

Meet your power supply needs efficiently and reliably with our 16VAC Wall Plug-In Power Supply. This UL Level VI compliant supply offers a stable 16V output at 750mA, ensuring consistent performance. With a 2-meter cord, 5.5x2.1mm connector, and mounting tab, this power supply provides convenience and versatility for various applications. Its compact design and high efficiency make it ideal for both consumer and institutional use.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
22 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

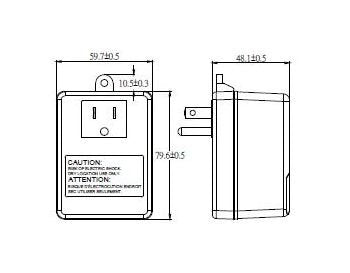

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
16 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 20.0 V
Specifications Secondary Output Current Ac
750 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
16 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
