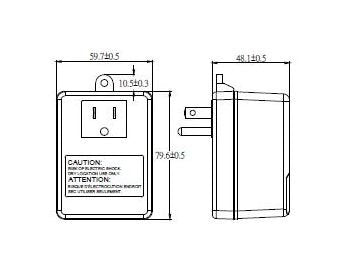

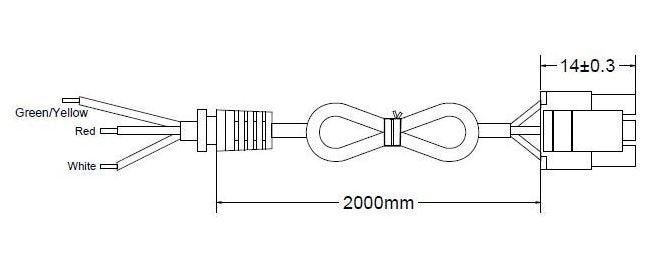

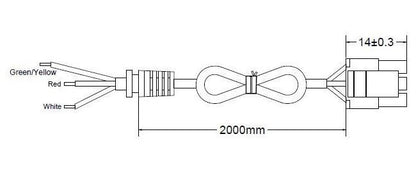

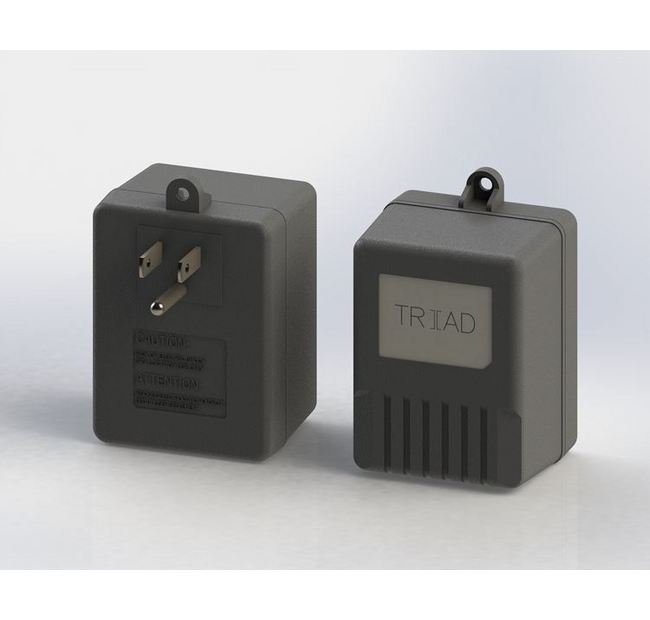

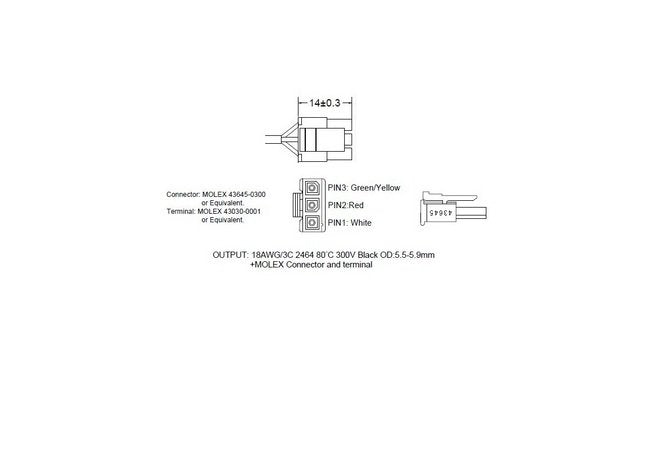

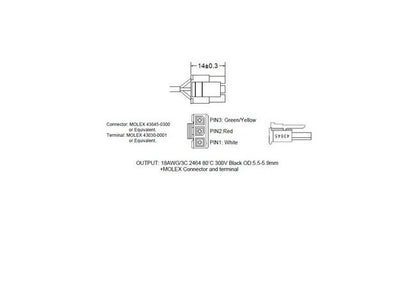

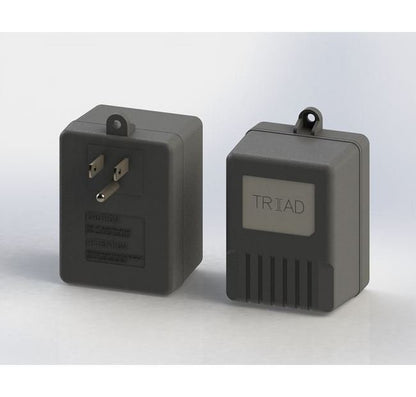

Upgrade your power supply with the 16VAC Wall Plug-In featuring a 2-meter cord, 3-terminal Molex with Pass Through Ground, and UL Level VI efficiency. With a primary input voltage of 120VAC, secondary output voltage of 16VAC at 750mA, and Class 2 UL rating, this power supply ensures reliable performance. Measuring 79.6mm in height, 59.7mm in width, and 48.1mm in depth, it is designed for external power source applications. The thermoplastic molded enclosure and North America input plug enhance durability and usability.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
22 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
16 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 20.0 V
Specifications Secondary Output Current Ac
750 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
16 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
