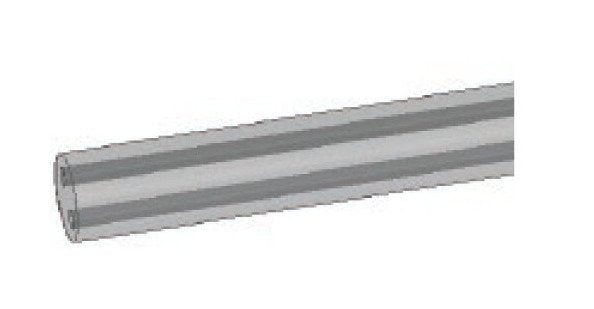

The 17.30mm Diameter UM10 Grade Carbide Hole Rod is a premium unground standard rod designed for precision machining applications. With a diameter tolerance of +0.3mm and a length of 330mm, this rod offers exceptional durability and accuracy. Featuring a 2.00mm coolant hole with precise tolerances, it ensures efficient cooling during operations. The carbide grade UM10 guarantees high performance and longevity, making it ideal for industrial settings requiring reliable tooling solutions.

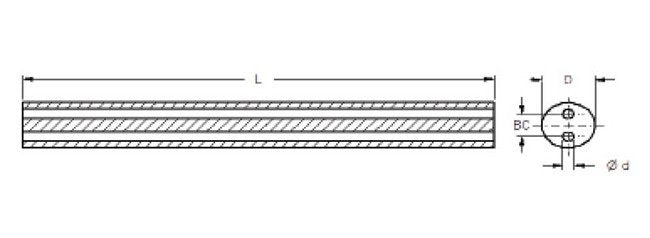

Product Specifications
Classifications Between Centers Bc Diameter
8.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
17.30 mm
Classifications Diameter Tolerance
+0.3 mm | 0.5 mm
Classifications Finish
Unground
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.164287469 Kilogram
