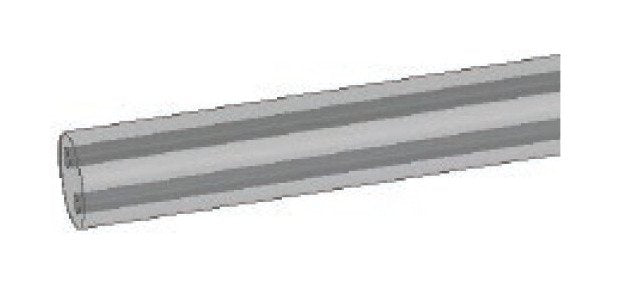

17.30mm UM10 Grade Carbide Hole Rod

Name: 17.30mm UM10 Grade Carbide Hole Rod
Brand: Ultra-Met
SKU: SOL-8b7d81
Price: 75.99 USD
Availability: OutOfStock

SKU:SOL-8b7d81

Premium 17.30mm UM10 Grade Carbide Rod for precise machining applications, featuring 2.00mm coolant hole & 6.2mm BC Diameter.

$75.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17.30mm UM10 Grade Carbide Hole Rod is a premium unground carbide rod designed for precision machining applications. With a diameter tolerance of +0.3mm and a length of 330mm (+5mm tolerance), this rod ensures consistent performance. Featuring a 2.00mm coolant hole with tight tolerance (+/- 0.20mm) and a 6.2mm Between Centers (BC) Diameter, this rod is suitable for a wide range of industrial needs. Crafted with high-quality carbide material and weighing 1.164287469 kilograms for enhanced durability, this rod is a reliable choice for machining operations. All inventory is subject to prior sales.

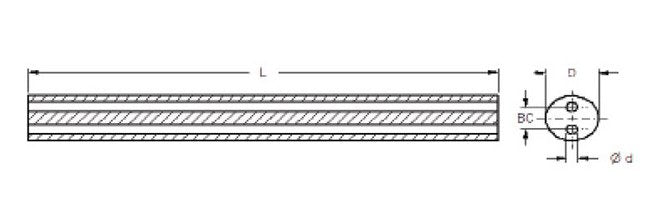

Product Specifications

Classifications Between Centers Bc Diameter

6.2 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM10

Classifications Diameter

17.30 mm

Classifications Diameter Tolerance

+0.3 mm | 0.5 mm

Classifications Finish

Unground

Classifications Hole D

2.00 mm

Classifications Hole D Tolerance

0.20 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

1.164287469 Kilogram

17.30mm UM10 Grade Carbide Hole Rod
