17.5mm Aluminum Combi Hinge - Non-Lift Off (Die-Cast Aluminum, Stainless Steel Pin)

Name: 17.5mm Aluminum Combi Hinge - Non-Lift Off (Die-Cast Aluminum, Stainless Steel Pin)
Brand: All Electronics Hardware
SKU: IND-269eff
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-269eff

Premium 17.5mm Aluminum Combi Hinge for precise panel installations. Strong aluminum construction with die-cast leaves, stainless steel pin, Alu Color Lacquered finish. Compliant with federal procurement standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

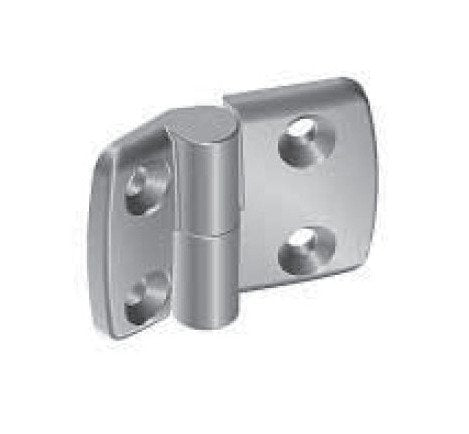

The 17.5mm Aluminum Combi Hinge is a high-quality, durable hinge designed for panel installations. Crafted from aluminum with die-cast aluminum hinge leaves and a stainless steel pin, this hinge offers exceptional strength and corrosion resistance. Its Alu Color Lacquered surface finish adds a sleek aesthetic. With dimensions A1 and A2 of 17.5mm and dimensions B1 and B2 of 29.5mm, this hinge provides precise alignment and smooth operation. Request asymmetric hinges for custom applications. Compliant with Federal/DoD procurement standards, GSA requirements, FAR regulations, and suitable for various industrial uses, this hinge is a reliable choice for both consumer and institutional buyers.

Product Specifications

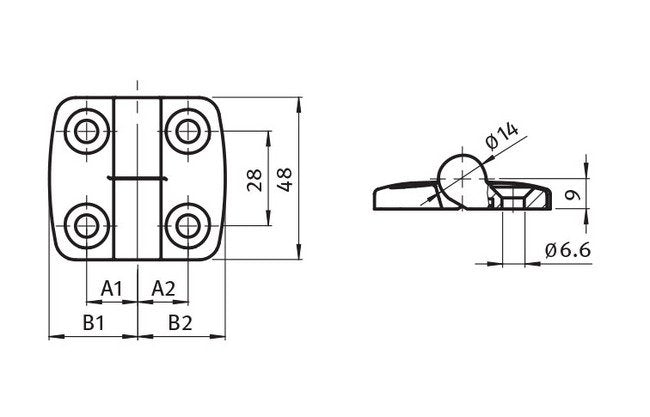

Specifications Dimension A1

17.5 mm

Specifications Dimension A2

17.5 mm

Specifications Dimension B1

29.5 mm

Specifications Dimension B2

29.5 mm

Specifications Hinge Leaves Material

Die-Cast Aluminum

Specifications Hinge Pin Material

Stainless Steel

Specifications Material

Aluminum

Specifications Note

Asymmetric hinges available on request

Specifications Surface

Alu Color Lacquered

Specifications Type

Non-Lift Off

17.5mm Aluminum Combi Hinge - Non-Lift Off (Die-Cast Aluminum, Stainless Steel Pin)
