17-7PH Alloy Stainless Steel, 0.0080in Thickness, Annealed Temper
17-7PH Alloy Stainless Steel, 0.0080in Thickness, Annealed Temper
SKU:177-491442
Discover top-quality 17-7PH Alloy Stainless Steel with superior strength, precise composition, and ASTM compliance.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
17-7PH Alloy Stainless Steel, 0.0080in Thickness, Annealed Temper
$42.99
Quantity: 1
Claim Your Seller Account
17-7PH Alloy Stainless Steel, 0.0080in Thickness, Annealed Temper
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 17-7PH Alloy Annealed Temper Stainless Steel offers superior strength with a minimum yield strength of 65 ksi and a minimum tensile strength of 150 ksi. Compliant with ASTM-A-693 and AMS-5528 standards, this alloy features precise composition including maximum 7.75% Nickel for enhanced durability. Ideal for applications requiring high hardness (92 Rockwell B) and significant elongation (20%). Trust Thin Metal Sales for custom sizing and top-quality 17-7PH Stainless Steel Alloy.

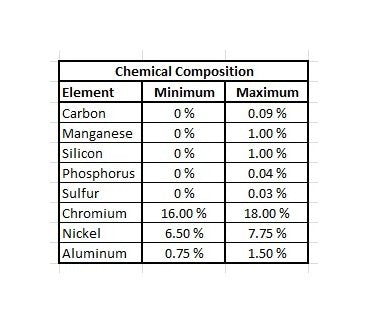

Product Specifications
Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Maximum Hardness
92 Rockwell B
Physical Properties Minimum Elongation In 2 Inch In
20 %
Physical Properties Minimum Tensile Strength
150 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset 000
65 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset Ove
55 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
17-7PH Stainless Steel
Specifications Ams Standard
AMS-5528
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Annealed Temper
Specifications Thickness
0.0080 in
Specifications Thickness Tolerance
5 %
Specifications Width
Custom
