17-7PH Alloy Stainless Steel - 0.0100" Thickness, Condition 'C' Temper

Name: 17-7PH Alloy Stainless Steel - 0.0100" Thickness, Condition 'C' Temper
Brand: Thin Metal Sales, Inc.
SKU: 177-c8ba76
Price: 29.99 USD
Availability: OutOfStock

SKU:177-c8ba76

High-strength 17-7PH Alloy SS - 0.010" Thickness, Condition 'C'. Meets ASTM & AMS standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17-7PH Alloy Condition 'C' Temper Stainless Steel offers superior strength and corrosion resistance, making it ideal for a wide range of applications. With a thickness of 0.0100 inches and meeting ASTM-A-693 and AMS-5529 standards, this stainless steel alloy guarantees reliable performance. It boasts a high tensile strength of 200 ksi and a minimum yield strength of 175 ksi. Additionally, its composition includes maximum percentages of key elements like aluminum, carbon, chromium, and nickel to ensure durability and longevity.

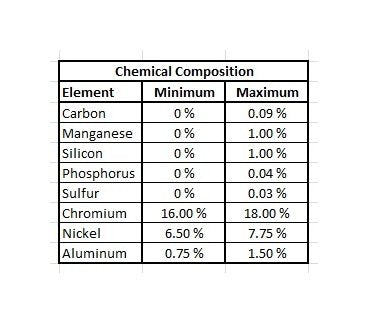

Product Specifications

Composition Maximum Aluminum Composition

1.50 %

Composition Maximum Carbon Composition

0.09 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Manganese Composition

1.00 %

Composition Maximum Nickel Composition

7.75 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Minimum Elongation In 2 Inch In

1 %

Physical Properties Minimum Hardness

41 Rockwell C

Physical Properties Minimum Tensile Strength

200 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

175 ksi

Specifications Alloy

17-7PH Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5529

Specifications Astm Steel Standard

ASTM-A-693

Specifications Length

Custom

Specifications Temper

Condition 'C' Temper

Specifications Thickness

0.0100 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom

17-7PH Alloy Stainless Steel - 0.0100" Thickness, Condition 'C' Temper
