17-7PH Alloy Stainless Steel Sheet - 0.010" Thickness, Annealed Temper

Name: 17-7PH Alloy Stainless Steel Sheet - 0.010" Thickness, Annealed Temper
Brand: Thin Metal Sales, Inc.
SKU: 177-fb2fcd
Price: 29.99 USD
Availability: OutOfStock

SKU:177-fb2fcd

High-performance 17-7PH Alloy Stainless Steel Sheet - 0.010" Thickness, Annealed Temper, compliant with ASTM-A-693 & AMS-5528.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17-7PH Alloy Annealed Temper Stainless Steel Sheet offers superior performance in demanding environments. With a thickness of 0.010 inches and compliance with ASTM-A-693 and AMS-5528 standards, this sheet guarantees a minimum yield strength of 65 ksi and a minimum tensile strength of 150 ksi. Its composition, including maximum aluminum, carbon, and chromium levels, ensures durability and longevity in various applications.

Product Specifications

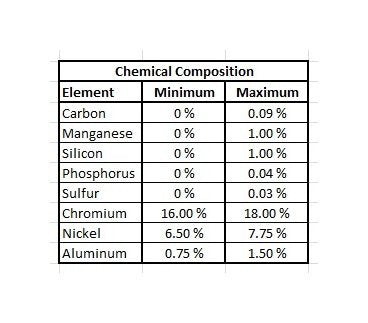

Composition Maximum Aluminum Composition

1.50 %

Composition Maximum Carbon Composition

0.09 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Manganese Composition

1.00 %

Composition Maximum Nickel Composition

7.75 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Maximum Hardness

92 Rockwell B

Physical Properties Minimum Elongation In 2 Inch In

20 %

Physical Properties Minimum Tensile Strength

150 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset 000

65 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset Ove

55 ksi

Specifications Alloy

17-7PH Stainless Steel Alloy

Specifications Alloy Steel Type

17-7PH Stainless Steel

Specifications Ams Standard

AMS-5528

Specifications Astm Steel Standard

ASTM-A-693

Specifications Length

Custom

Specifications Temper

Annealed Temper

Specifications Thickness

0.0100 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom
