17-7PH Alloy Stainless Steel Sheet, 0.0200" Thickness, Annealed Temper

Name: 17-7PH Alloy Stainless Steel Sheet, 0.0200" Thickness, Annealed Temper
Brand: Thin Metal Sales, Inc.
SKU: 177-4e4e53
Price: 49.99 USD
Availability: OutOfStock

SKU:177-4e4e53

High-strength 17-7PH Alloy Stainless Steel Sheet with ASTM-A-693 & AMS-5528 compliance for durability and reliability.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17-7PH Alloy Annealed Temper Stainless Steel Sheet offers superior strength with a minimum yield strength of 55 ksi and a minimum tensile strength of 150 ksi. This sheet is precision engineered to ASTM-A-693 and AMS-5528 standards, ensuring reliability and durability. With a maximum hardness of 92 Rockwell B and a composition designed for optimal performance, this stainless steel sheet is ideal for applications where strength and corrosion resistance are crucial.

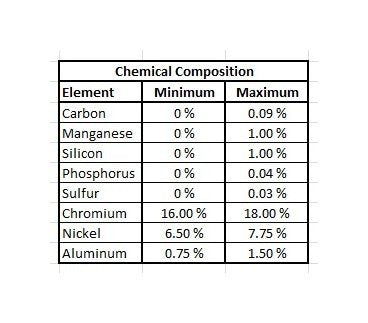

Product Specifications

Composition Maximum Aluminum Composition

1.50 %

Composition Maximum Carbon Composition

0.09 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Manganese Composition

1.00 %

Composition Maximum Nickel Composition

7.75 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Maximum Hardness

92 Rockwell B

Physical Properties Minimum Elongation In 2 Inch In

20 %

Physical Properties Minimum Tensile Strength

150 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset 000

65 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset Ove

55 ksi

Specifications Alloy

17-7PH Stainless Steel Alloy

Specifications Alloy Steel Type

17-7PH Stainless Steel

Specifications Ams Standard

AMS-5528

Specifications Astm Steel Standard

ASTM-A-693

Specifications Length

Custom

Specifications Temper

Annealed Temper

Specifications Thickness

0.0200 in

Specifications Thickness Tolerance

0.0010 in

Specifications Width

Custom
