17-7PH Alloy Stainless Steel Sheet - 0.025 in Thickness
17-7PH Alloy Stainless Steel Sheet - 0.025 in Thickness
SKU:177-a58149
High-strength 17-7PH Stainless Steel Sheet - 0.025 in, ASTM-A-693 & AMS-5528 compliant
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
17-7PH Alloy Stainless Steel Sheet - 0.025 in Thickness
$99.99
Quantity: 1
Claim Your Seller Account
17-7PH Alloy Stainless Steel Sheet - 0.025 in Thickness
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 17-7PH Alloy Stainless Steel Sheet in 0.025 in thickness offers exceptional strength, with a minimum tensile strength of 150 ksi and maximum hardness of 92 Rockwell B. Compliant with ASTM-A-693 and AMS-5528 standards, this annealed temper sheet is ideal for various industrial applications requiring high-performance stainless steel.
Product Specifications

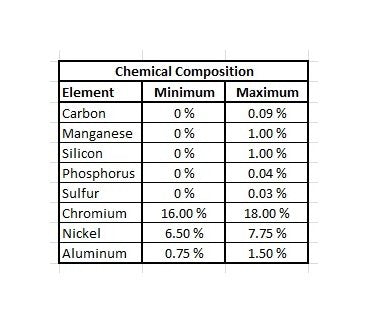

Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Maximum Hardness
92 Rockwell B
Physical Properties Minimum Elongation In 2 Inch In
20 %
Physical Properties Minimum Tensile Strength
150 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset 000
65 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset Ove
55 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
17-7PH Stainless Steel
Specifications Ams Standard
AMS-5528
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Annealed Temper
Specifications Thickness
0.0250 in
Specifications Thickness Tolerance
0.0010 in
Specifications Width
Custom
