17-7PH Stainless Steel, 0.0040 in Thickness, Condition 'C' Temper
17-7PH Stainless Steel, 0.0040 in Thickness, Condition 'C' Temper
SKU:177-f7cade
High-strength 17-7PH stainless steel in 0.0040 in thickness, compliant with ASTM-A-693 & AMS-5529. Ideal for diverse applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
17-7PH Stainless Steel, 0.0040 in Thickness, Condition 'C' Temper
$45.99
Quantity: 1
Claim Your Seller Account
17-7PH Stainless Steel, 0.0040 in Thickness, Condition 'C' Temper
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 17-7PH Alloy Condition 'C' Temper Stainless Steel offers exceptional strength and corrosion resistance, making it ideal for a wide range of applications. Meeting ASTM-A-693 and AMS-5529 standards, this stainless steel boasts a 0.0040 in thickness with a tight 5% thickness tolerance. With a tensile strength of 200 ksi and a yield strength of 175 ksi, this alloy ensures reliability and durability. Its composition includes maximum percentages of aluminum, carbon, manganese, silicon, phosphorus, sulfur, chromium, and nickel, guaranteeing high quality and performance.

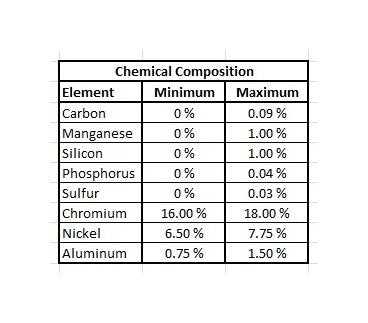

Product Specifications
Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Minimum Elongation In 2 Inch In
1 %
Physical Properties Minimum Hardness
41 Rockwell C
Physical Properties Minimum Tensile Strength
200 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset
175 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
Stainless Steel
Specifications Ams Standard
AMS-5529
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Condition 'C' Temper
Specifications Thickness
0.0040 in
Specifications Thickness Tolerance
5 %
Specifications Width
Custom
