17-7PH Stainless Steel, 0.0120in Thickness, Condition 'C' Temper - ASTM-A-693, AMS-5529

Name: 17-7PH Stainless Steel, 0.0120in Thickness, Condition 'C' Temper - ASTM-A-693, AMS-5529
Brand: Thin Metal Sales, Inc.
SKU: 177-a4d2f0
Price: 29.99 USD
Availability: OutOfStock

SKU:177-a4d2f0

High-performance 17-7PH Alloy Stainless Steel, 0.0120in thickness, meets ASTM-A-693 & AMS-5529 standards. Ideal for precision applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior strength and durability with our 17-7PH Alloy Stainless Steel, featuring a thickness of 0.0120 inches. This premium alloy meets ASTM-A-693 and AMS-5529 standards, ensuring exceptional performance in demanding applications. With a high tensile strength of 200 ksi and a 175 ksi yield strength, this stainless steel is ideal for precision engineering and critical environments. Trust in the quality and reliability of Thin Metal Sales for your stainless steel needs.

Product Specifications

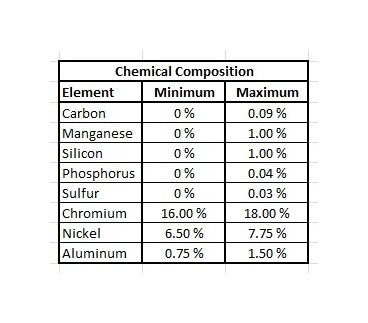

Composition Maximum Aluminum Composition

1.50 %

Composition Maximum Carbon Composition

0.09 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Manganese Composition

1.00 %

Composition Maximum Nickel Composition

7.75 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Minimum Elongation In 2 Inch In

1 %

Physical Properties Minimum Hardness

41 Rockwell C

Physical Properties Minimum Tensile Strength

200 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

175 ksi

Specifications Alloy

17-7PH Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5529

Specifications Astm Steel Standard

ASTM-A-693

Specifications Length

Custom

Specifications Temper

Condition 'C' Temper

Specifications Thickness

0.0120 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom

17-7PH Stainless Steel, 0.0120in Thickness, Condition 'C' Temper - ASTM-A-693, AMS-5529
