17-7PH Stainless Steel Alloy, 0.0305 in Thickness, Annealed Temper
17-7PH Stainless Steel Alloy, 0.0305 in Thickness, Annealed Temper
SKU:177-7e7e69
High-strength 17-7PH Stainless Steel Alloy in 0.0305 in thickness, ASTM-A-693 & AMS-5528 compliant
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
17-7PH Stainless Steel Alloy, 0.0305 in Thickness, Annealed Temper
$129.99
Quantity: 1
Claim Your Seller Account
17-7PH Stainless Steel Alloy, 0.0305 in Thickness, Annealed Temper
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 17-7PH Alloy Stainless Steel offers superior strength with a minimum tensile strength of 150 ksi and excellent durability with a maximum hardness of 92 Rockwell B. This alloy, conforming to ASTM-A-693 and AMS-5528 standards, features precise composition control ensuring maximum performance. With a thickness of 0.0305 inches and annealed temper, it meets the stringent requirements of industrial applications, making it ideal for both consumer and institutional buyers.

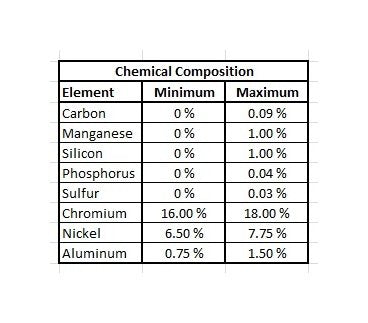

Product Specifications
Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Maximum Hardness
92 Rockwell B
Physical Properties Minimum Elongation In 2 Inch In
20 %
Physical Properties Minimum Tensile Strength
150 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset 000
65 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset Ove
55 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
17-7PH Stainless Steel
Specifications Ams Standard
AMS-5528
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Annealed Temper
Specifications Thickness
0.0305 in
Specifications Thickness Tolerance
0.0010 in
Specifications Width
Custom
