17-7PH Stainless Steel Alloy Condition 'C' Temper - 0.0050in Thickness

Name: 17-7PH Stainless Steel Alloy Condition 'C' Temper - 0.0050in Thickness
Brand: Thin Metal Sales, Inc.
SKU: 177-285ab9
Price: 49.99 USD
Availability: OutOfStock

SKU:177-285ab9

Premium 17-7PH Stainless Steel Alloy - 0.0050in Thickness, High Strength & Corrosion Resistance

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17-7PH Alloy Condition 'C' Temper Stainless Steel offers exceptional strength and durability with a thickness of 0.0050 inches. Compliant with ASTM-A-693 and AMS-5529 standards, it features a composition including 18% Chromium and 7.75% Nickel, ensuring high corrosion resistance. With a minimum Tensile Strength of 200 ksi and a Yield Strength of 175 ksi, this stainless steel alloy is ideal for applications requiring precision and reliability.

Product Specifications

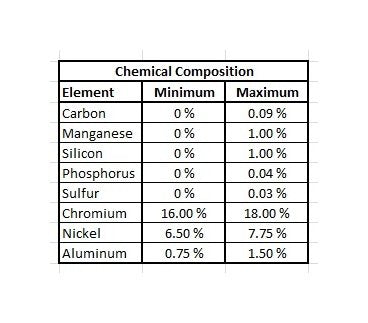

Composition Maximum Aluminum Composition

1.50 %

Composition Maximum Carbon Composition

0.09 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Manganese Composition

1.00 %

Composition Maximum Nickel Composition

7.75 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Minimum Elongation In 2 Inch In

1 %

Physical Properties Minimum Hardness

41 Rockwell C

Physical Properties Minimum Tensile Strength

200 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

175 ksi

Specifications Alloy

17-7PH Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5529

Specifications Astm Steel Standard

ASTM-A-693

Specifications Length

Custom

Specifications Temper

Condition 'C' Temper

Specifications Thickness

0.0050 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom

17-7PH Stainless Steel Alloy Condition 'C' Temper - 0.0050in Thickness
