17-7PH Stainless Steel Alloy, Condition 'C' Temper, 0.0310 in Thickness
17-7PH Stainless Steel Alloy, Condition 'C' Temper, 0.0310 in Thickness
SKU:177-b24d51
High-strength 17-7PH Stainless Steel Alloy, Condition 'C' Temper, 0.0310 in thickness. ASTM-A-693 & AMS-5529 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
17-7PH Stainless Steel Alloy, Condition 'C' Temper, 0.0310 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
17-7PH Stainless Steel Alloy, Condition 'C' Temper, 0.0310 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 17-7PH Stainless Steel Alloy in Condition 'C' Temper offers exceptional strength with a minimum tensile strength of 200 ksi and a minimum yield strength of 175 ksi. This stainless steel alloy with a thickness of 0.0310 in is ASTM-A-693 and AMS-5529 compliant. With precise chemical composition and excellent physical properties, this alloy is ideal for applications requiring high performance and reliability.

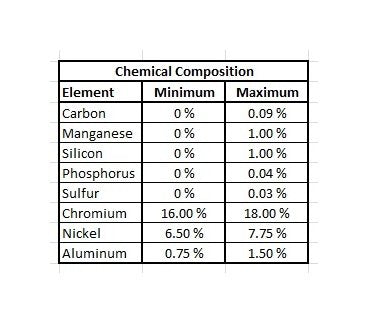

Product Specifications
Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Minimum Elongation In 2 Inch In
1 %
Physical Properties Minimum Hardness
41 Rockwell C
Physical Properties Minimum Tensile Strength
200 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset
175 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
Stainless Steel
Specifications Ams Standard
AMS-5529
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Condition 'C' Temper
Specifications Thickness
0.0310 in
Specifications Thickness Tolerance
0.0010 in
Specifications Width
Custom
