17-7PH Stainless Steel Sheet, 0.0080 in Thickness, Condition 'C' Temper

Name: 17-7PH Stainless Steel Sheet, 0.0080 in Thickness, Condition 'C' Temper
Brand: Thin Metal Sales, Inc.
SKU: 177-33ceb0
Price: 89.99 USD
Availability: OutOfStock

SKU:177-33ceb0

Premium 17-7PH stainless steel sheet in 0.0080 in thickness, ASTM-A-693 & AMS-5529 compliant

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ideal for precise applications, this 17-7PH stainless steel sheet features a thickness of 0.0080 in with a tight tolerance of 5%. It meets ASTM-A-693 and AMS-5529 standards, ensuring reliability and durability. With a composition that includes 18% Chromium and 7.75% Nickel, it offers superior tensile and yield strength. The 17-7PH alloy in Condition 'C' Temper guarantees a minimum tensile strength of 200 ksi, making it perfect for demanding environments.

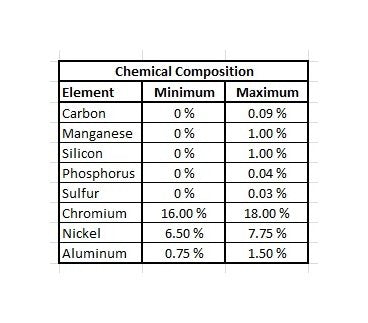

Product Specifications

Composition Maximum Aluminum Composition

1.50 %

Composition Maximum Carbon Composition

0.09 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Manganese Composition

1.00 %

Composition Maximum Nickel Composition

7.75 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Minimum Elongation In 2 Inch In

1 %

Physical Properties Minimum Hardness

41 Rockwell C

Physical Properties Minimum Tensile Strength

200 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

175 ksi

Specifications Alloy

17-7PH Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5529

Specifications Astm Steel Standard

ASTM-A-693

Specifications Length

Custom

Specifications Temper

Condition 'C' Temper

Specifications Thickness

0.0080 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom
