17 Series Circuit Board Supports: .156 Board Hole x .125 Chassis Hole

Name: 17 Series Circuit Board Supports: .156 Board Hole x .125 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-ff8f1b
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ff8f1b

Secure and durable 17 Series Circuit Board Supports for easy manual installation with Nylon 66 UL94V-2 material. RoHS compliant. Pack of 500 in natural color.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17 Series Circuit Board Supports feature a sturdy construction made of Nylon 66 UL94V-2 material, ensuring durability and reliability for your circuit board installations. With a Board Hole Diameter of .156 inches and a Chassis Hole Diameter of .125 inches, these supports provide secure yet easily releasable fastening. Designed for easy manual installation, these supports offer a temperature range of -40 to 185F (-40 to 85C) and meet RoHS compliance standards. The pack includes 500 supports in a natural color for efficient stock management.

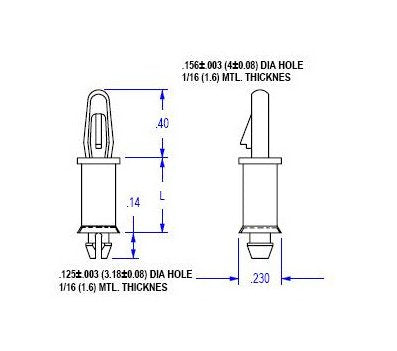

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.875 (22.2) inches (mm)

Specifications Dim W

.189 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.062 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
