17 Series Circuit Board Supports - .156 Board Hole x .125 Chassis Hole

Name: 17 Series Circuit Board Supports - .156 Board Hole x .125 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-e7f9a3
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-e7f9a3

Securely support circuit boards with 17 Series .156 Board Hole x .125 Chassis Hole. Easy to install, RoHS compliant, and durable for diverse environments.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 17 Series Circuit Board Supports with .156 Board Hole and .125 Chassis Hole offer easy manual installation for secure board retention. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and meet ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), these supports are designed for durability and reliability in various applications.

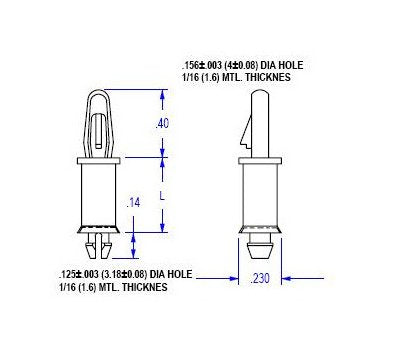

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.625 (15.9) inches (mm)

Specifications Dim W

.189 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.062 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
