17 Series Circuit Board Supports - Nylon .156 x .125 Holes
17 Series Circuit Board Supports - Nylon .156 x .125 Holes
SKU:01C-fd3d11
Secure and release circuit boards effortlessly with these durable Nylon supports. RoHS compliant and ASTM certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
17 Series Circuit Board Supports - Nylon .156 x .125 Holes
$29.99
Quantity: 1
Claim Your Seller Account
17 Series Circuit Board Supports - Nylon .156 x .125 Holes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 17 Series Circuit Board Supports feature a durable Nylon 66 construction with a UL94V-2 flame rating for enhanced safety. These supports are designed for easy manual installation, providing a secure fit with a positive lock mechanism while remaining releasable. With a board hole diameter of .156 inches and a chassis hole diameter of .125 inches, these supports are compatible with various panel thicknesses. Meeting ASTM D4066 and PA111 standards, they are RoHS compliant and operate within a temperature range of -40 to 185F (-40 to 85C), making them ideal for diverse industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

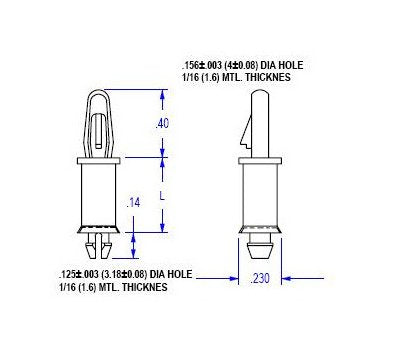

Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.312 (7.9) inches (mm)
Specifications Dim W
.189 (4.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
