The 17 Series Nylon Circuit Board Supports provide easy hand installation with secure board end fastening and releasable functionality. Made of UL94V-2 Nylon 66 material, these supports come in a natural color and can withstand temperatures ranging from -40 to 185F (-40 to 85C). With a board hole diameter of .156 inches and a chassis hole diameter of .125 inches, these supports are designed to accommodate panel thickness of .062 inches on both ends. ASTM and RoHS compliant, they meet high industry standards for reliability and performance.
Product Specifications

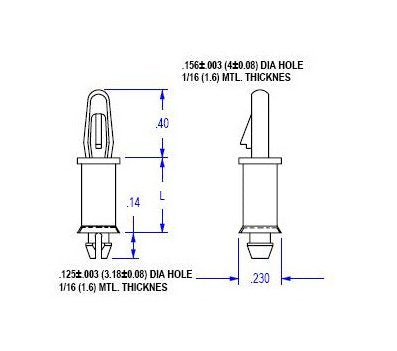

Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.375 (9.5) inches (mm)
Specifications Dim W
.189 (4.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
