17 Series Nylon Circuit Board Supports

Name: 17 Series Nylon Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-880213
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-880213

Secure and easy-to-install Nylon Circuit Board Supports with ASTM & RoHS compliance.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ensure secure and easy installation of circuit boards with our 17 Series Circuit Board Supports. Made of Nylon 66 UL94V-2 material, these supports feature a .156-inch board hole and a .125-inch chassis hole, providing a reliable and releasable hold. With ASTM and RoHS compliance, along with a temperature range of -40 to 185F, these supports are ideal for a wide range of applications.

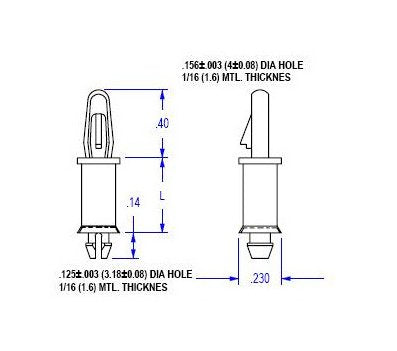

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Dim W

.189 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.062 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

17 Series Nylon Circuit Board Supports
