17 Series Nylon Circuit Board Supports
17 Series Nylon Circuit Board Supports
SKU:01C-3f1f24
Secure and releasable Nylon Circuit Board Supports for easy hand installation, comply with RoHS standards and ASTM certifications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
17 Series Nylon Circuit Board Supports
$59.99
Quantity: 1
Claim Your Seller Account
17 Series Nylon Circuit Board Supports
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

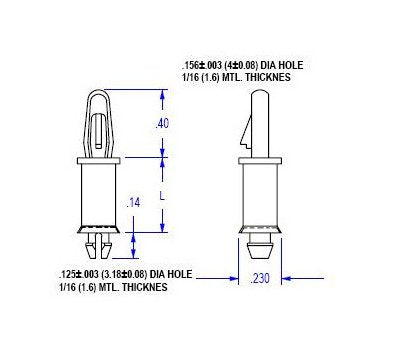

The 17 Series Nylon Circuit Board Supports are designed for easy hand installation, providing secure board end placement in .156-inch board holes and .125-inch chassis holes. Made of UL94V-2 Nylon 66 material, these supports offer reliable and releasable attachment, suitable for a temperature range of -40 to 185F (-40 to 85C). With ASTM D4066 and PA111 certifications, these supports ensure durability and compliance with RoHS standards. Available in a pack of 500, they are a dependable choice for circuit board mounting needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Dim W
.189 (4.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
