17 Series Nylon Circuit Board Supports
17 Series Nylon Circuit Board Supports
SKU:01C-62b347
Secure and reliable Nylon Circuit Board Supports with easy manual installation for diverse panel thicknesses. RoHS compliant and ASTM certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
17 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
17 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

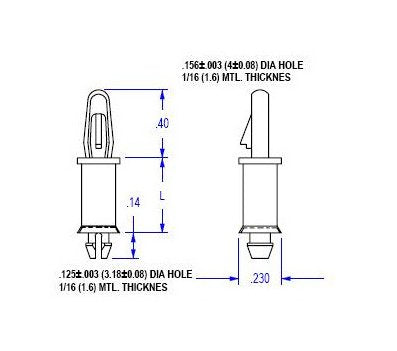

The 17 Series Circuit Board Supports feature a durable Nylon 66 construction with UL94V-2 certification, ensuring reliability and safety. Designed for easy manual installation, these supports securely hold the board end in place while allowing for quick release. With a board hole diameter of .156 inches and a chassis hole diameter of .125 inches, these supports are compatible with various panel thicknesses. RoHS compliant and meeting ASTM D 4066 and PA111 standards, these supports offer a temperature range of -40 to 185F, making them ideal for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.250 (6.4) inches (mm)
Specifications Dim W
.189 (4.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
