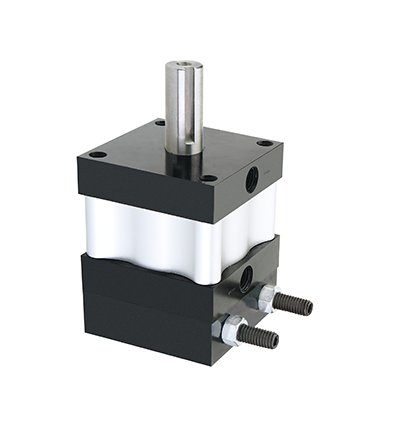

175 in-lb Rotary Vane Actuator
175 in-lb Rotary Vane Actuator
SKU:ROT-3c5a37
Precision meets durability with the 175 in-lb Rotary Vane Actuator by Compact Automation Products.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
175 in-lb Rotary Vane Actuator
$599.99
Quantity: 1
Claim Your Seller Account
175 in-lb Rotary Vane Actuator
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 175 in-lb Rotary Vane Actuator by Compact Automation Products offers unparalleled precision and reliability. With a rotational output shaft and maximum torque of 175 in-lb, this actuator ensures continuous full torque throughout its rotation cycle. Featuring options like stop cushioning and position feedback, it guarantees precise repeatability without any loss of motion. The patented urethane seals provide a long cycle life and non-lube service, making it an ideal choice for applications requiring high performance and durability.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
2.9 in
Specifications Maximum Torque
175 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
