1750mm Vibratory Separator by Inovatec Machinery
1750mm Vibratory Separator by Inovatec Machinery
SKU:MAS-6b1a41
Boost workshop efficiency with the portable 1750mm Vibratory Separator by Inovatec Machinery. Efficiently separate parts and media for reusability.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
1750mm Vibratory Separator by Inovatec Machinery
$2,899.99
Quantity: 1
Claim Your Seller Account
1750mm Vibratory Separator by Inovatec Machinery
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your workshop efficiency with the 1750mm Vibratory Separator by Inovatec Machinery. This portable separator boasts a dual-layered sieve for precise small-size media separation. With a motor power of 0.25 kW and a weight of 160 kg, it offers rapid and effective parts and media separation, saving you valuable time and energy. Customizable to fit various mass finishing machines, it is an essential tool for finishing operators seeking optimal results and reusability of abrasives.
Product Specifications
Additional Information

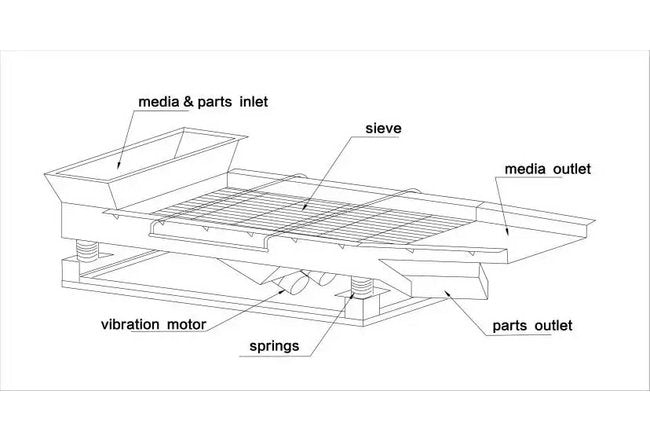

This tool is used by mass finishing operators to separate finishing media from parts. Both finishing media and parts are poured out to this separation sieve. The finishing media falls through the screen and parts land on the sieve.Operators can then collect and reuse finishing media because abrasives are not one-off materials.The vibratory separator is a simple yet effective tool for your vibratory finishing machine. It makes your parts or finishing media selection easier. You can also use it to separate small-sized finishing media from your components.
Dimensions Height
900 mm
Dimensions Length
1750 mm
Dimensions Width
640 mm
Features And Applications
Rapid and effective separation of finished parts from abrasivesReplaceable separating screenSaves you a significant amount of time and energyUseful for sieving small-size abrasivesNot restricted to bowl vibratory finishing machines alone. You can also customize it to fit other mass finishing machines.
Optional Settings
Dual-layered sieve to effectively sieve out small-size finishing mediaVariable frequency converter to alter with your machine’s vibration amplitudeA separation panel with uniformly punched holes
Specifications Motor Power
0.25 kW
Specifications Number Of Motors
2
Specifications Weight
160 kg
