17mm UM12 Grade Precision Carbide Rod with Coolant Hole
17mm UM12 Grade Precision Carbide Rod with Coolant Hole
SKU:SOL-0ed68f
High-precision 17mm Carbide Rod for industrial machining with a 2mm coolant hole. Polished finish, ISO h6 standard tolerance.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
17mm UM12 Grade Precision Carbide Rod with Coolant Hole
$65.99
Quantity: 1
Claim Your Seller Account
17mm UM12 Grade Precision Carbide Rod with Coolant Hole
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

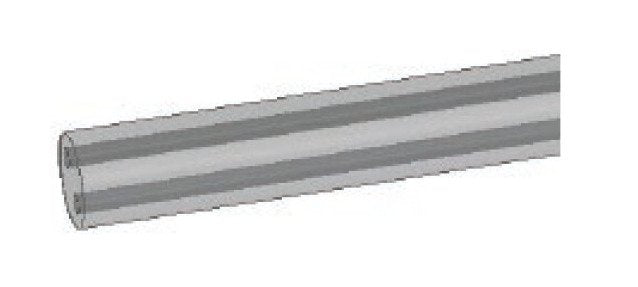

The 17mm Diameter UM12 Grade Precision Ground Reduced Between Centers (BC) Carbide Rod is engineered for high-precision machining applications. Crafted from durable carbide material, this rod features a polished finish, a 2mm straight coolant hole, and a tolerance level that meets ISO h6 standards. With a diameter tolerance of ±0.20mm and a BC diameter tolerance of 0/-0.30mm, this rod ensures consistent performance. Ideal for industrial settings requiring exacting specifications, this rod offers reliability and longevity in machining operations.

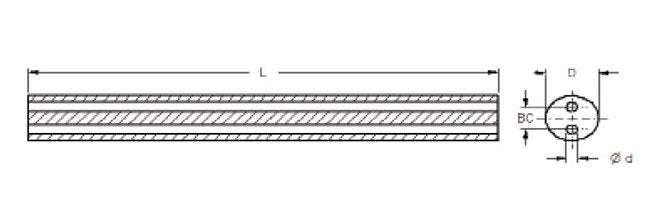

Product Specifications
Classifications Between Centers Bc Diameter
6.2 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
17.00 mm
Classifications Finish
Polished
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.164287469 Kilogram
