18.0V Center Tap Power Transformers

Name: 18.0V Center Tap Power Transformers
Brand: Triad Magnetics
SKU: POW-8ce58b
Price: 69.99 USD
Availability: OutOfStock

SKU:POW-8ce58b

Enhance power supply setups with 18.0V center tap transformers for precise and efficient performance.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

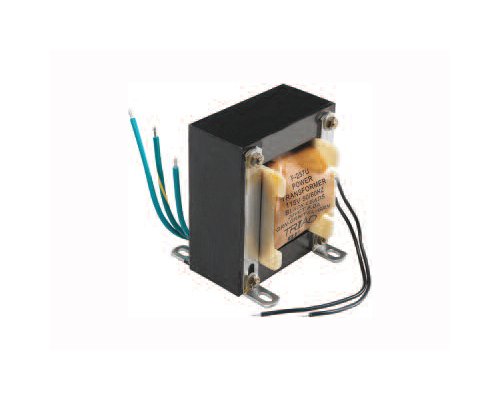

Upgrade your power systems with our Multiple Secondary Chassis Mount Power Transformers. Featuring a secondary voltage of 18.0V, center tap contact type, and a secondary current of 1.000A, these transformers are designed for precision and efficiency. With primary voltage of 115V, a sturdy U-shaped case type, and high-quality lugs for connections, these transformers ensure reliable performance. Meet voltage and current requirements easily by connecting windings in series or parallel configurations. Transform your power supply setup with ease and confidence.

Product Specifications

Note Note

Windings may be connected in series to obtain their combined voltage when properly phased. Current will be equal to the current of the lowest winding. Example: Two 6.3 V windings @ 2 A in series would be 12.6 V @ 2 A. Windings may also be connected in parallel to obtain combined current. Example: Two 6.3 V windings @ 2 A in parallel would be 6.3 V @ 4 A.

Specifications Case Type

Specifications Connections

Lugs

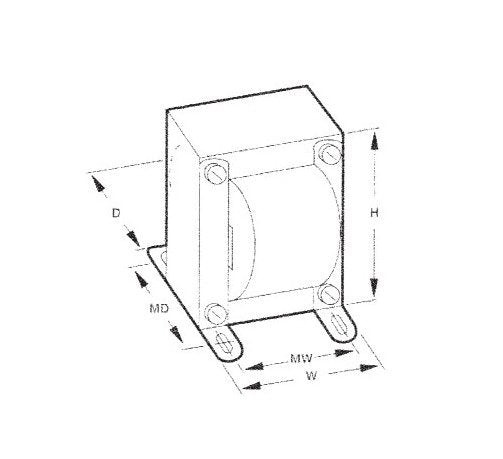

Specifications Depth D

2 1/2 in

Specifications Height H

2 1/2 in

Specifications Mounting Depth

2 in

Specifications Mounting Hole Size

13/64 x 3/8 in

Specifications Mounting Width

2 1/2 in

Specifications Primary Frequency

60 Hz

Specifications Primary Voltage

115 V

Specifications Secondary Current

1.000 A

Specifications Secondary Rms Test Voltage

1,500 V

Specifications Secondary Voltage

18.0 V

Specifications Transformer Contact Type

Center Tap

Specifications Weight

2.20 lb

Specifications Width W

3 in
