18.30mm UM10 Grade Carbide Hole Rod
18.30mm UM10 Grade Carbide Hole Rod
SKU:SOL-391a68
Premium 18.30mm UM10 Grade Carbide Rod for precise and reliable machining applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
18.30mm UM10 Grade Carbide Hole Rod
$79.99
Quantity: 1
Claim Your Seller Account
18.30mm UM10 Grade Carbide Hole Rod
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

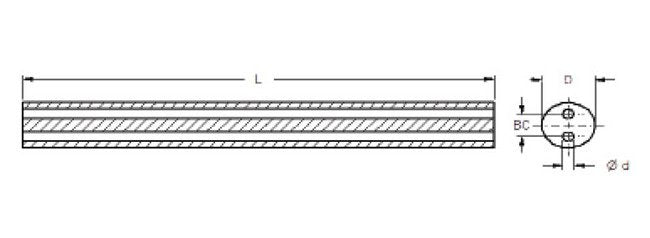

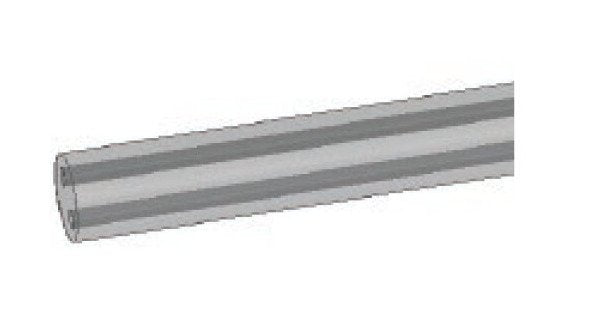

The 18.30mm UM10 Grade Carbide Hole Rod is a high-quality unground standard rod designed to meet the stringent requirements of industrial applications. With a precise diameter of 18.30mm (+0.3mm | 0.5mm) and a length of 330mm (+5mm | 0mm), this rod boasts exceptional accuracy and consistency. Featuring two straight coolant carbide holes with a diameter of 2.00mm (±0.20mm), it ensures efficient coolant flow for enhanced performance. Manufactured with UM10 grade carbide, this rod offers superior hardness and wear resistance, making it ideal for heavy-duty machining operations. Each rod weighs 1.301150649 kilograms and is meticulously crafted to deliver reliable and precise results. Upgrade your machining capabilities with this top-of-the-line carbide rod.
Product Specifications
Classifications Between Centers Bc Diameter
9.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
18.30 mm
Classifications Diameter Tolerance
+0.3 mm | 0.5 mm
Classifications Finish
Unground
Classifications Hole D
2.00 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.301150649 Kilogram
