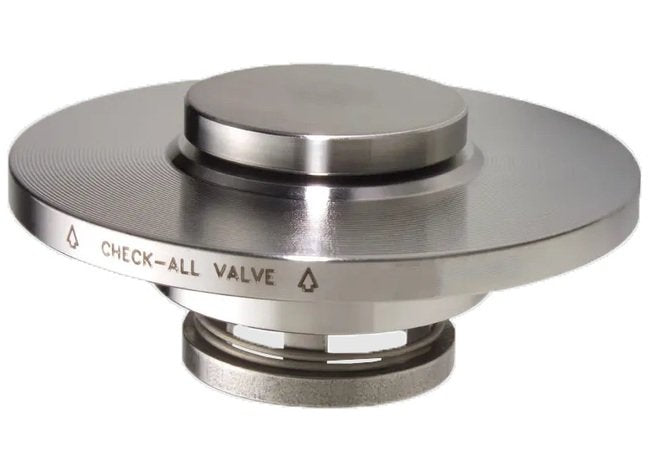

18" F1 Style Flange Insert Check Valve, Stainless Steel Body
18" F1 Style Flange Insert Check Valve, Stainless Steel Body
SKU:F1F-4d2e7b
Reliable 18" F1 Style Check Valve for secure flanged system installations. Stainless steel body with 0.500 psi cracking pressure. ISO 9001 certified.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
18" F1 Style Flange Insert Check Valve, Stainless Steel Body
$129.99
Quantity: 1
Claim Your Seller Account
18" F1 Style Flange Insert Check Valve, Stainless Steel Body
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 18 Inch F1 Style Flange Insert Check Valve offers a reliable solution for flanged systems, featuring a durable stainless steel body. Designed to simplify installation, this valve requires two gaskets for secure sealing. With a standard cracking pressure of 0.500 psi and various seat materials available, it ensures optimal performance for different applications. Additionally, certified by ISO 9001 and compliant with CE PED 2014/68/EU standards, it meets rigorous industry requirements. Ideal for institutional use requiring precision and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

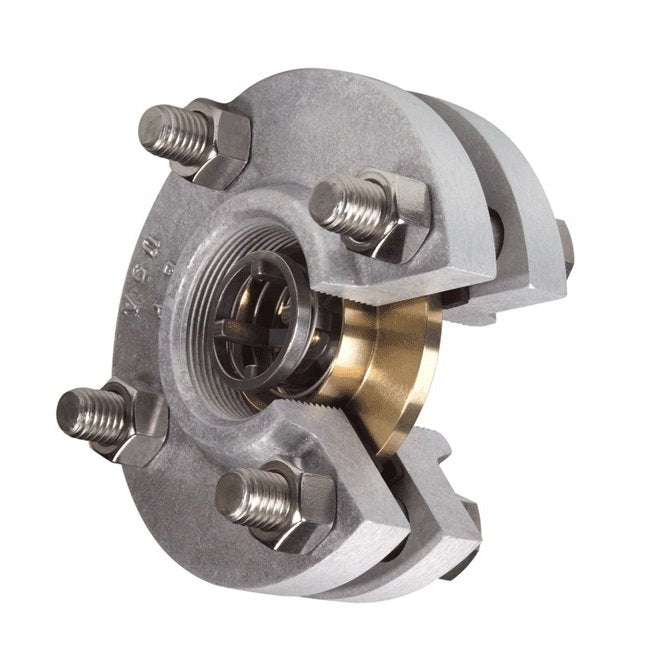

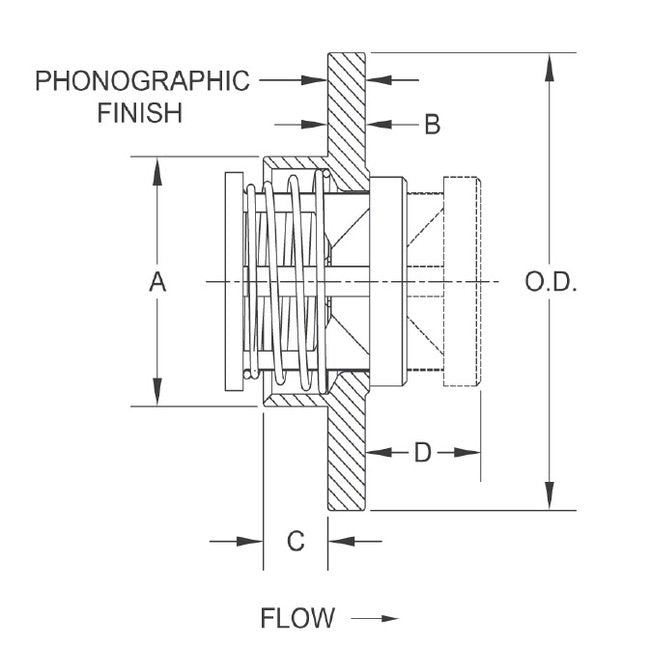

Flange Insert valves are designed to fit between two mating ANSI flanges. The "Spring Housing", designated by the "A" dimension (Check "A" dimension for clearance with pipe ID. Generally "A" dimension is designed for use in schedule 40 pipe for class 150 & 300 valves (F1). Order class 600 (F6) valves for schedule 80 pipe.), is designed to be inserted into the upstream pipe, thereby helping to center it in the pipe. Therefore, there must be clearance between the spring housing and the pipe or flange. Generally speaking, the FIV Class 150 and 300 valves (F1) are designed for standard schedule pipe with Class 150 or 300 flanges, and the FIV Class 600 (F6) valves are designed for schedule 80 pipe with Class 150, 300 or 600 flanges.The Flange Insert valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings. Many valves in this series can be supplied with B16.34 certification.
Note
Consult the factory for an optional Flag Tag which indicates that a check valve is present in the line.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Polytetrafluoroethylene (PTFE) = TF | Polyvinyl Chloride (PVC) = PV | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
18 in
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
V
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
F1
