18 Inch Aluminum T-Handle Test Plug - 143-7 Series
18 Inch Aluminum T-Handle Test Plug - 143-7 Series
SKU:HIG-a9be6d
Enhance testing efficiency with our 18" Aluminum T-Handle Test Plug. Ideal for sewer air pressure tests, this plug offers durability and performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
18 Inch Aluminum T-Handle Test Plug - 143-7 Series
$89.99
Quantity: 1
Claim Your Seller Account
18 Inch Aluminum T-Handle Test Plug - 143-7 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your testing equipment with the 18" T-Handle Aluminum Test Plug from Petersen®. This premium test plug features a heavy-duty aluminum body, chemical-resistant neoprene seal, and a robust T-handle for ease of use. Suitable for sewer air pressure tests, it offers excellent performance for long-term applications. With a nominal diameter of 18 inches, this plug ensures a secure fit and can withstand maximum back pressure of 5 psi for air and 20 ft liquid head pressure. Ensure safety and efficiency in your testing processes with this reliable product.

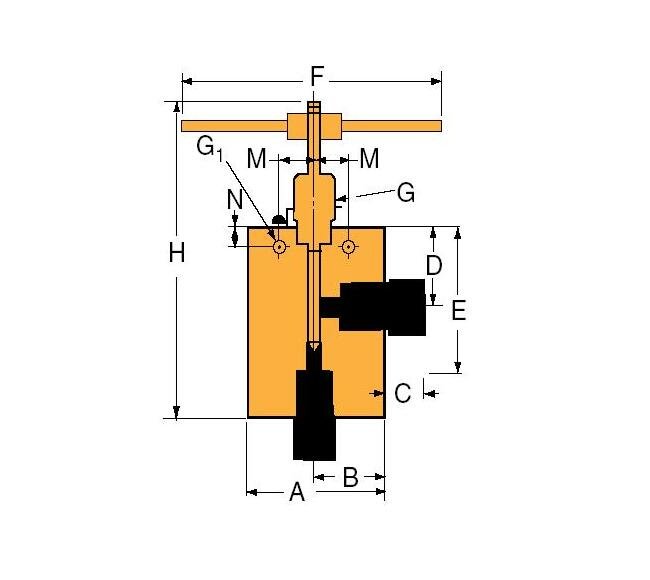

Product Specifications
Specifications A Width
4.88 in | 123.96 mm
Specifications Block Thickness
2.25 in | 57.15 mm
Specifications B Length
2.44 in | 61.96 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D Height
3.50 in | 88.90 mm
Specifications E Height
5.12 in | 130.04 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
9.30 in | 236.22 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.6
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
