18 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator
18 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator
SKU:INL-333893
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
18 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator
$49.99
Quantity: 1
Claim Your Seller Account
18 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

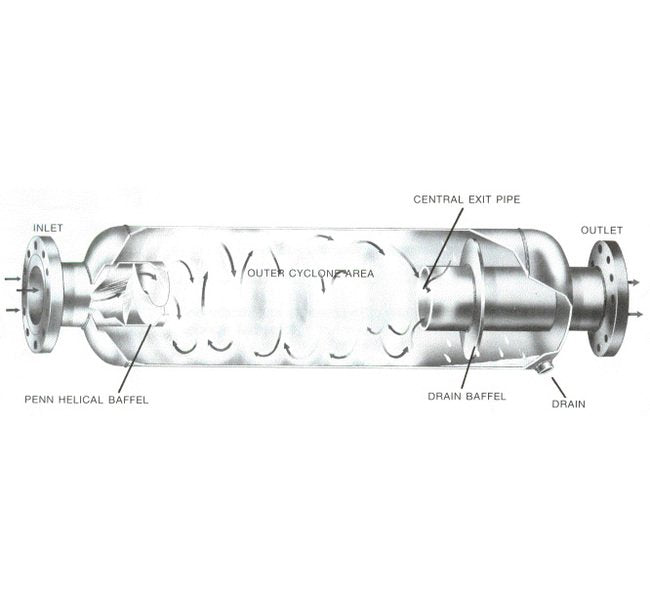

Our other Inline design is a "straight thru" that uses a helical baffle to create the centrifugal separation. The body of the separator follows the line requiring less space for installation. These separator are available in horizontal, upflow, or downflow models. All Penn centrifugal separators are designed and stamped ASME code in threaded, 150# flanged or 300# flanged. Special pressures are also available.
Product Specifications

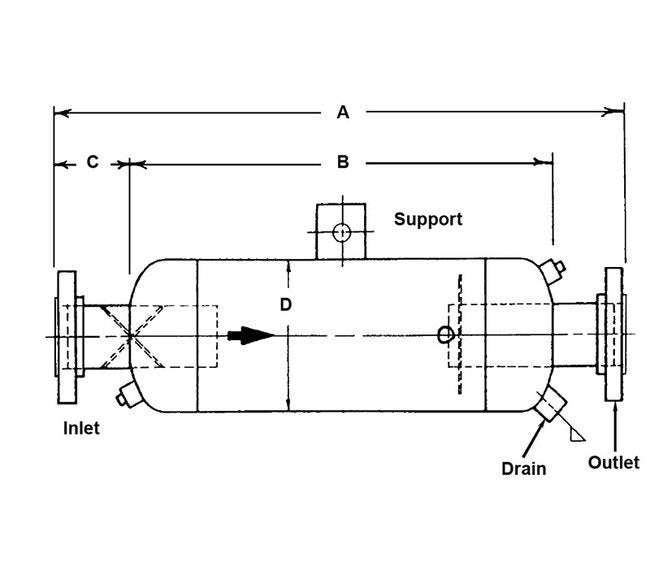

Dimensions Dimension A
108 in
Dimensions Dimension B
92 in
Dimensions Dimension C
8 in
Dimensions Dimension D
36 in
Dimensions Drain Dr
3 in
Dimensions Inlet I
18 in
Dimensions Outlet O
18 in
Specifications Media Separated
Air | Steam
Specifications Separator Type
Entrainment
