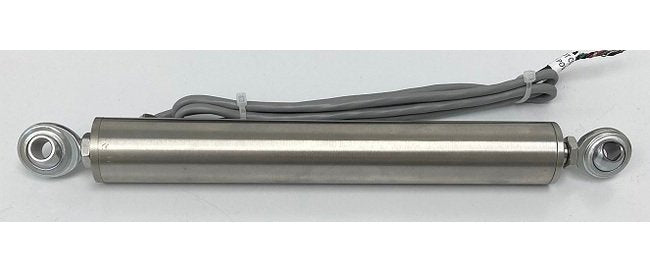

18-Inch Stroke Linear Potentiometer Sensor - 0-10V DC Output, 27mm OD
18-Inch Stroke Linear Potentiometer Sensor - 0-10V DC Output, 27mm OD
SKU:LIN-2fefc2
High-precision 18-Inch Stroke Linear Potentiometer Sensor with 0-10V DC Output & 27mm OD for accurate position sensing in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
18-Inch Stroke Linear Potentiometer Sensor - 0-10V DC Output, 27mm OD
$129.99
Quantity: 1
Claim Your Seller Account
18-Inch Stroke Linear Potentiometer Sensor - 0-10V DC Output, 27mm OD
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 27mm OD, 18-inch stroke Linear Potentiometer Replacement Sensor is a high-precision device from Alliance Sensors Group. With a voltage output range of 0 to 10V DC, this sensor ensures accurate position sensing. Crafted with a stainless steel body and radial cable type, it offers durability and reliability. Operating temperature ranges from -40 to 105 ºC, with a linearity of <0.25% and a resolution of 0.025% of full scale, making it ideal for precise industrial applications. European Conformity (CE) approved, this sensor guarantees quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
18 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
18 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
