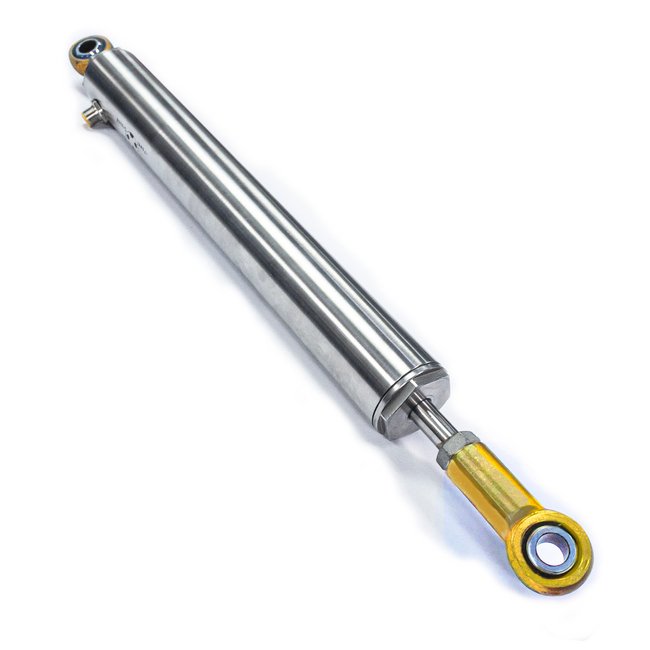

18-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
18-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
SKU:LIN-03a90c
High-Precision 18-Inch Stroke Linear Potentiometer Sensor with 0-10V DC Output. Durable stainless steel construction, CE Approved.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
18-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
$129.99
Quantity: 1
Claim Your Seller Account
18-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 18-inch Stroke Linear Potentiometer Replacement Sensor, featuring a 0 to 10 Volt DC Output, is a high-precision device designed for accurate position sensing. With a durable stainless steel body and radial M12 connector type, this sensor ensures reliable performance in a wide temperature range from -40 to 105 ºC. It boasts exceptional linearity (<0.25% of Full Scale) and impressive resolution (0.025% of Full Scale), making it ideal for industrial applications that demand precision and consistency. European Conformity (CE) Approved, this sensor from Alliance Sensors Group guarantees quality and compliance with international standards.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Connector Type
Radial M12
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
45 mm
Technical Specs Range
18 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
18 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
