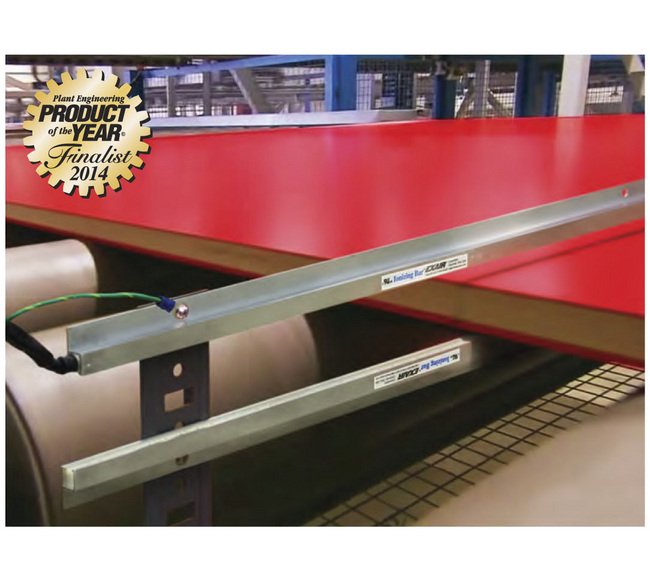

The 18-inch Ionizing Bar by EXAIR effectively eliminates static electricity on paper, film, and plastics, preventing dust buildup, product damage, and personnel shocks. This electrically powered bar generates a high concentration of positive and negative ions for rapid static decay within a 2-inch range. With an aluminum channel, stainless steel emitters, and UL-rated plastic parts, this bar is compact, easy to install, shockless, and designed for industrial environments. It solves issues like dust clinging, hazardous sparks, material tearing, and sheet feeding problems. Ideal for various applications including bag making, labeling, packaging, and textiles.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
18 in | 457 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
