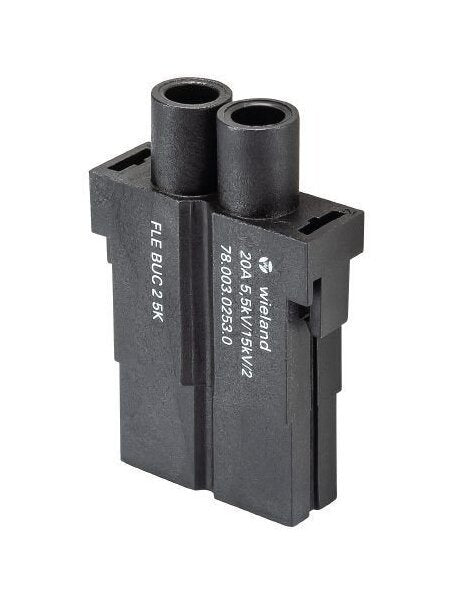

18 kV Impulse Voltage Modular Connector Female Insert
18 kV Impulse Voltage Modular Connector Female Insert
SKU:IND-fff0fc
Enhance your connectors with Wieland's 18 kV Impulse Voltage Female Insert. UL/CSA compliant, durable design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
18 kV Impulse Voltage Modular Connector Female Insert
$24.99
Quantity: 1
Claim Your Seller Account
18 kV Impulse Voltage Modular Connector Female Insert
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial multipole connectors with the advanced 18 kV Impulse Voltage Female Insert from Wieland. Featuring a 2 pole design with a crimp connection and turned contacts, this female insert ensures reliable performance. With a maximum operating temperature of 120°C and a V0 inflammability class of insulation material, this insert is both durable and safe. It meets UL/CSA standards for 600V and 20A ratings, with RoHS and REACH-SVHC conformity, making it a compliant and high-quality solution for your connectivity needs.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
2
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
2
Connection Data With Wire Protection
No
Contacts Surface
Silver-Plated
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Modular Version
Yes
General Pollution Degree
2
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
5500 V
Technical Data Din En 61984 Nominal Current
20 A
Technical Data Din En 61984 Nominal Voltage
5500 V
Technical Data Din En 61984 Rated Impulse Voltage
18 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
4 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
20 A
Technical Data Ulcsa Rated Current According Underwriters Labora
20 A
