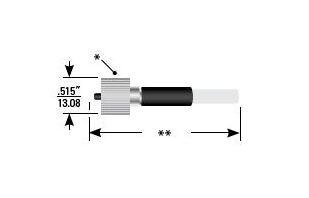

18 kVDC Century+ Series Non-Shielded Cable Assembly, Threaded Plug
18 kVDC Century+ Series Non-Shielded Cable Assembly, Threaded Plug
SKU:HIG-d66a2e
Discover superior 18 kVDC Century+ Series cable assembly for high voltage applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
18 kVDC Century+ Series Non-Shielded Cable Assembly, Threaded Plug
$129.99
Quantity: 1
Claim Your Seller Account
18 kVDC Century+ Series Non-Shielded Cable Assembly, Threaded Plug
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 18 kVDC Century+ Series Non-Shielded Cable Assembly with a Threaded Plug is a cutting-edge solution designed for high voltage applications. Featuring a unique interface seal and a 25 kVDC test voltage at 70,000 ft., this assembly ensures reliable performance in extreme conditions. With a current rating of 12 A and operating temperature range of -55 to 125°C, it is ideal for aerospace, defense, and radar systems. The assembly is meticulously engineered with silicone rubber interface seals and BeCu/Au contact materials, making it a versatile and durable choice for demanding environments.
Product Specifications
Body Properties Coupling Nut Material
CRES | Stainless Steel
Contact Properties Contact Material
BeCu/Au with CRES Hood
Contact Properties Contact Size
22
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Band
Specifications Coupling Style
Threaded
Specifications Current Rating
TBD
Specifications Current Rating Rms
12 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates all century plus series threaded receptacles.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
Century+
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
18 kVDC
Specifications Wire Insulation
0.110 in. diameter silicone coated FEP | FEP
Specifications Wire Pn
178-8781
Specifications Wire Type
Non-Shielded
