18 kVDC Ruggedized Pee-Wee High Voltage Receptacle
18 kVDC Ruggedized Pee-Wee High Voltage Receptacle
SKU:HIG-83f288
High-voltage 18 kVDC Receptacle for industrial and military applications, featuring push-pull coupling and silicone rubber encapsulation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
18 kVDC Ruggedized Pee-Wee High Voltage Receptacle
$49.99
Quantity: 1
Claim Your Seller Account
18 kVDC Ruggedized Pee-Wee High Voltage Receptacle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 18 kVDC Ruggedized Pee-Wee Series Receptacle is designed for high-voltage applications with a current rating of 5 Amp and a test voltage of 18 kVDC. Featuring a thermo plastic insulator material and silicone rubber encapsulation, this connector is suitable for various industries including high-end industrial manufacturing, medical instrumentation, and military radar systems. With push-pull coupling style and compatibility with standard PeeWee connectors, this product ensures secure and reliable connections in challenging environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

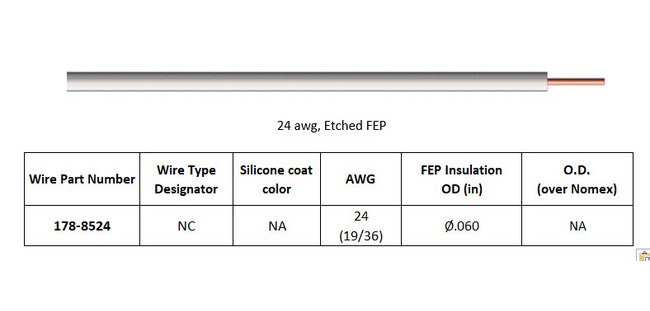

Cable Wire Properties Wire Diameter
Ã.060 in
Cable Wire Properties Wire Insulation
Etched FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, Straight, Double-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
