18 Series Circuit Board Supports

Name: 18 Series Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-605023
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-605023

Securely fasten circuit boards with ease using 18 Series Circuit Board Supports. Snap-lock into place, releasable design, UL94V-2 material.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 18 Series Circuit Board Supports are designed for easy hand installation, featuring snap-lock mechanisms for secure yet removable fastening. With a mounting hole diameter of .125 inches (3.2mm) and a panel thickness of .063 inches (1.6mm), these supports are crafted from Nylon 66 UL94V-2 material, ensuring durability and safety. RoHS compliant and capable of withstanding temperatures ranging from -40 to 185F (-40 to 85C), they provide a reliable solution for circuit board assembly needs. Each pack contains 500 supports in a natural color. Optional UL94V-0 material is available upon request for enhanced flame retardancy.

Product Specifications

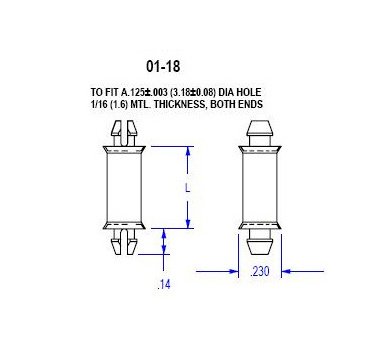

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.378 (9.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

18 Series Circuit Board Supports
