18 Series Circuit Board Supports, .125" Board Hole x .125" Chassis Side

Name: 18 Series Circuit Board Supports, .125" Board Hole x .125" Chassis Side
Brand: All Electronics Hardware
SKU: 01C-81e743
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-81e743

Durable 18 Series Circuit Board Supports with .125" Board Hole x .125" Chassis Side, easy snap lock installation, RoHS compliant, temp range: -40 to 185F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

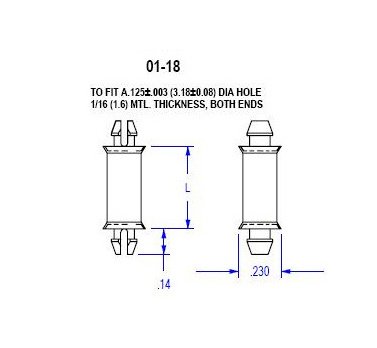

The 18 Series Circuit Board Supports are designed for easy manual installation with snap lock feature for secure positioning yet user-friendly release. With a mounting hole diameter of .125 inches (3.2mm) and made of Nylon 66 UL94V-2 material, these supports offer durability and reliability. Each support is equipped with dimensions of .126 inches (3.2mm) in length and compatible with a panel thickness of .063 inches (1.6mm). RoHS compliant and offering a temperature range of -40 to 185F (-40 to 85C), these supports meet stringent industry standards for safety and quality.

Product Specifications

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.126 (3.2) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

18 Series Circuit Board Supports, .125" Board Hole x .125" Chassis Side
