18 Series Circuit Board Supports (.125 Board Hole x .125 Chassis Side)

Name: 18 Series Circuit Board Supports (.125 Board Hole x .125 Chassis Side)
Brand: All Electronics Hardware
SKU: 01C-5c9d22
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-5c9d22

Conveniently install and secure circuit boards with 18 Series Supports. RoHS compliant, durable Nylon 66 material, temperature range -40 to 185F.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

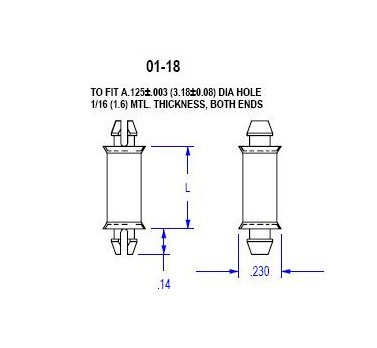

The 18 Series Circuit Board Supports are designed for convenient installation by hand, featuring snap-lock functionality that securely holds components in place yet allows for easy release. With a board hole diameter of .125 inches (3.2mm) and a panel thickness of .063 inches (1.6mm), these supports offer reliable stability for circuit boards. Made from UL94V-2 Nylon 66 material, they are RoHS compliant and have a temperature range of -40 to 185F (-40 to 85C), ensuring durability and safety in various environments. The packaging includes 500 supports per bag, providing ample supply for your project needs.

Product Specifications

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.252 (6.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

18 Series Circuit Board Supports (.125 Board Hole x .125 Chassis Side)
