18 Series Circuit Board Supports, .125 Board Hole x .125 Chassis Side

Name: 18 Series Circuit Board Supports, .125 Board Hole x .125 Chassis Side
Brand: All Electronics Hardware
SKU: 01C-5f1c3c
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-5f1c3c

Securely support circuit boards with 18 Series mounts. Snap-lock, .125 inches, Nylon 66 UL94V-2, RoHS compliant. Pack of 500.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 18 Series Circuit Board Supports are designed for easy hand installation, featuring snap-lock mechanisms for secure yet removable mounting. With a mounting hole diameter of .125 inches (3.2mm) at both ends, these supports offer reliable functionality. Made from Nylon 66 UL94V-2 material (UL94V-0 available), they are ASTM D4066 and PA111 compliant, RoHS compliant, and suitable for a temperature range of -40 to 185F (-40 to 85C). This pack includes 500 supports in natural color, providing essential support for circuit boards.

Product Specifications

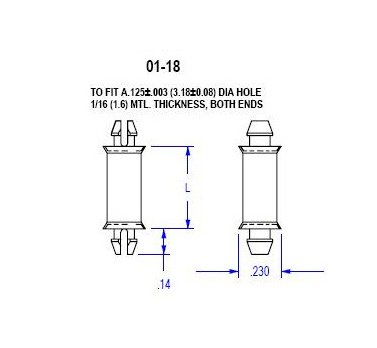

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.315 (8.0) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
