18 Series Miniature Side Entry Wire Saddle with Arrowhead Mount - Wire Routing Device
18 Series Miniature Side Entry Wire Saddle with Arrowhead Mount - Wire Routing Device
SKU:03W-8fe251
Efficiently manage wires with the 18 Series Miniature Side Entry Wire Saddle. Low-profile, durable Nylon 66 construction meets RoHS standards.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
18 Series Miniature Side Entry Wire Saddle with Arrowhead Mount - Wire Routing Device
$9.99
Quantity: 1
Claim Your Seller Account
18 Series Miniature Side Entry Wire Saddle with Arrowhead Mount - Wire Routing Device
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

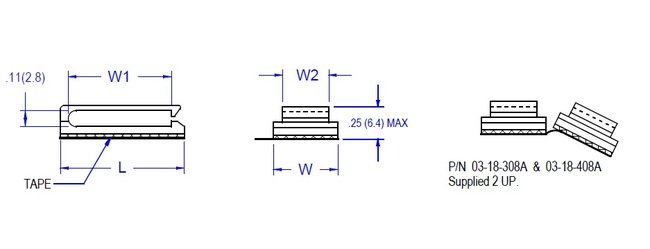

The 18 Series Miniature Side Entry Wire Saddle with Arrowhead Mount is a low-profile clip designed for efficient wire management. Featuring a side entry design with a .156 mounting hole, this saddle is ideal for panels with a thickness ranging from .04 to .16 inches. Constructed from UL94V-2 rated Nylon 66 material in a natural color, this wire routing device is RoHS compliant, ensuring it meets environmental standards. With dimensions of .67 (L) x .375 (W) x .50 (W1) x .32 (W2) inches, this saddle offers precision and durability for various wiring applications.
Product Specifications
Specifications Dim L
.67 (17) inches (mm)
Specifications Dim W
.375 (9.5) inches (mm)
Specifications Dim W1
.50 (12.7) inches (mm)
Specifications Dim W2
.32 (8.1) inches (mm)
