18 Series Nylon Circuit Board Supports
18 Series Nylon Circuit Board Supports
SKU:01C-73d00d
Secure, releasable 18 Series Nylon Circuit Board Supports with .125'' board hole diameter, easy to install, durable, RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
18 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
18 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

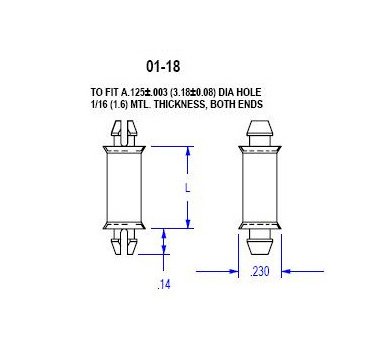

The 18 Series Nylon Circuit Board Supports are designed for easy hand installation with snap-lock feature for secure yet releasable locking. With a board hole diameter of .125 inches (3.2mm) on both ends and a panel thickness of .063 inches (1.6mm), these supports are made of Nylon 66 UL94V-2 material, ensuring reliability and durability. Compliant with RoHS standards and offering a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for various applications in electronic assemblies.
Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.626 (15.9) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
