18 Series Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side

Name: 18 Series Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side
Brand: All Electronics Hardware
SKU: 01C-ddb1b1
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-ddb1b1

Easy-to-install 18 Series Circuit Board Supports in Nylon 66 material. .125 Board Hole x .125 Chassis Side. RoHS compliant. Packaged in 500/bag.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 18 Series Nylon Circuit Board Supports are designed for easy hand installation, featuring snap-lock functionality that ensures secure placement while remaining easily releasable. With a mounting hole diameter of .125 inches (3.2mm) and a panel thickness of .063 inches (1.6mm), these supports are crafted from Nylon 66 UL94V-2 material, meeting industry standards for durability and safety. RoHS compliant and capable of withstanding temperatures ranging from -40 to 185F (-40 to 85C), these supports come in a natural color and are packaged in convenient bags of 500 units. For enhanced safety, UL94V-0 material options are also available upon request.

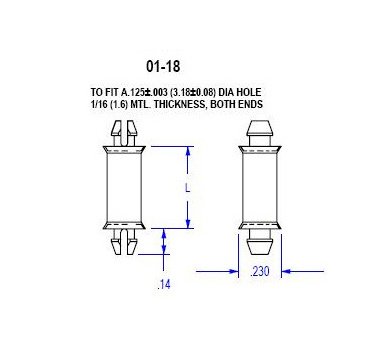

Product Specifications

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
