18 Series Nylon Circuit Board Supports with .125" Board Hole x .125" Chassis Side, Pack of 500

Name: 18 Series Nylon Circuit Board Supports with .125" Board Hole x .125" Chassis Side, Pack of 500
Brand: All Electronics Hardware
SKU: 01C-e3b32b
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-e3b32b

Securely install circuit boards with these easy-to-use nylon supports. Pack of 500, UL94V-2 material, RoHS compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 18 Series Circuit Board Supports are designed for easy hand installation, featuring snap-lock technology for secure placement that remains easily releasable. Each support has a mounting hole diameter of .125 inches (3.2mm) on both ends, ensuring stability for your circuit boards. Made of resilient Nylon 66 UL94V-2 material (UL94V-0 available), these supports comply with UL File No: E41938, ASTM D 4066, PA111, and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), these supports offer durability and reliability for your electronics.

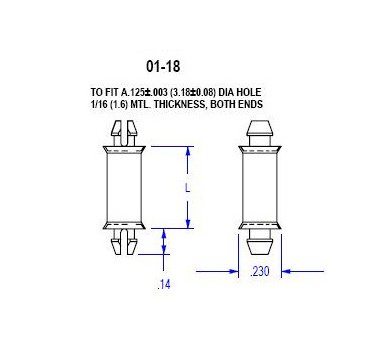

Product Specifications

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

1.00 (25.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
