180pF Capacitance Humidity Sensor
180pF Capacitance Humidity Sensor
SKU:HUM-32a1d4
Cutting-edge 180pF Capacitance Humidity Sensor for precise humidity measurements with wide temperature and humidity range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
180pF Capacitance Humidity Sensor
$29.99
Quantity: 1
Claim Your Seller Account
180pF Capacitance Humidity Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

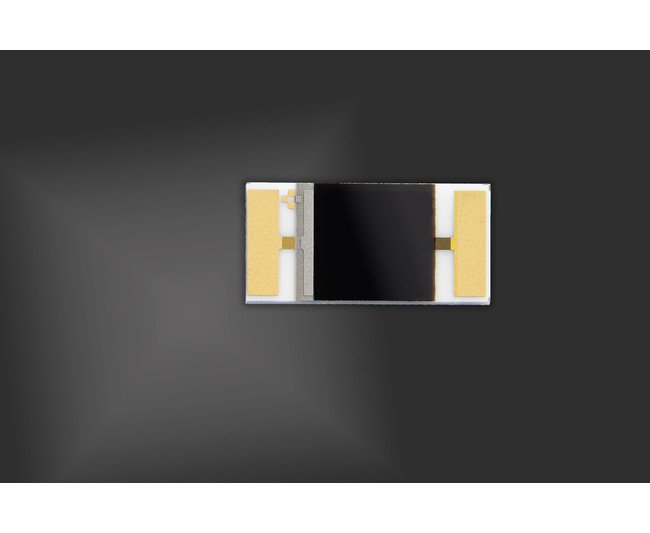

The 180pF Capacitance Humidity Sensor is a cutting-edge capacitive SMD sensor designed for precise humidity measurements. Manufactured by Innovative Sensor Technology, USA Division, this sensor boasts a capacitance of 180pF with a tolerance of ±50pF. Operating seamlessly in a wide range of temperatures (-50 to +150 ºC) and humidity levels (0 to 100%), this sensor is ideal for automotive and white good applications. With RoHS compliance and automatic assembly compatibility, this sensor guarantees top-notch performance in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
0.38 mm
Dimensions Length
4.0 mm
Dimensions Width
2.0 mm
Specifications Capacitance
180 pF
Specifications Capacitance Tolerance At 23 Degree Celsius C Temp
50 pF
Specifications Connection
Automatic Assembly Compatible | Surface Mounted Device (SMD)
Specifications Manufacturer Part Number
P14 FemtoCap-G (180pF ± 50pF)
Specifications Old Product Code
040.00111
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-50 to +150 ºC
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Type
1608
